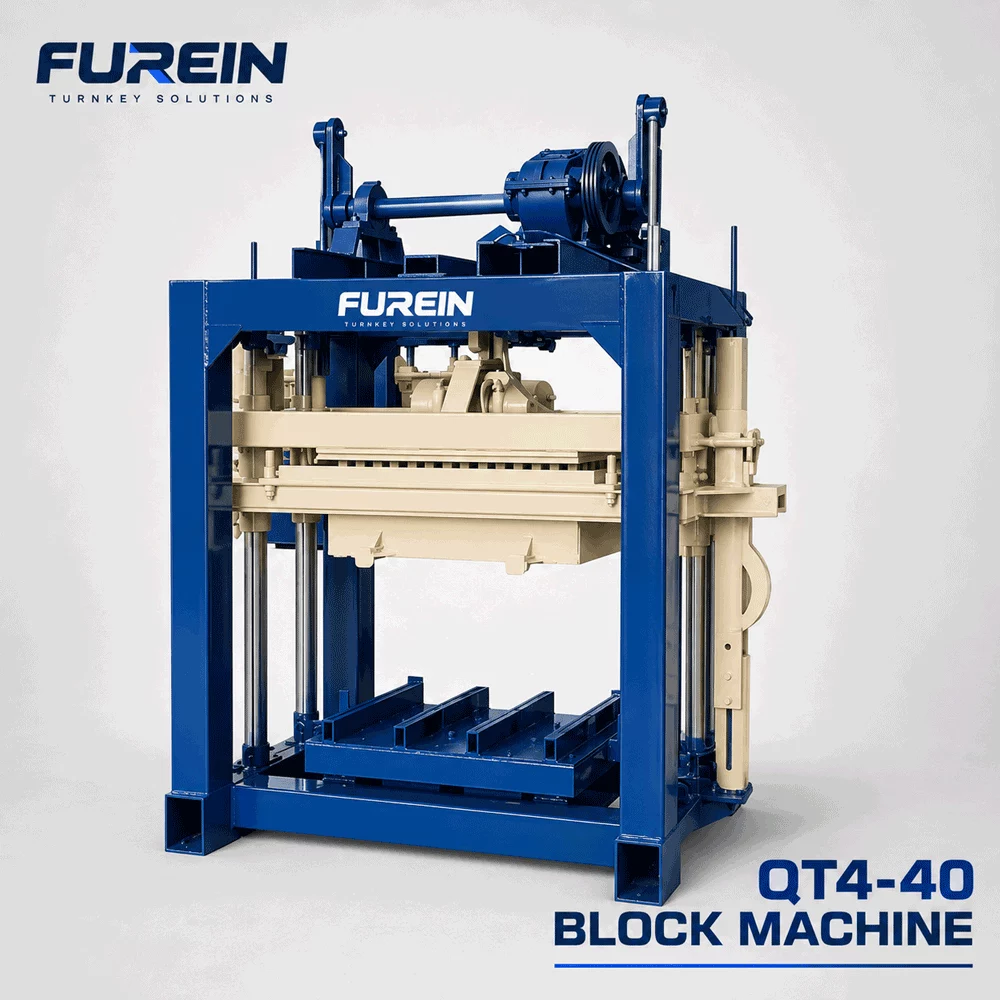

QT4-40 Manual Block Making Machine
The QT4-40 manual block making machine is designed to meet the practical needs of small and medium-sized block production. Building upon the original block-forming design, the system has been upgraded from a single-shaft to a dual-shaft configuration, resulting in enhanced stability and wear resistance. A vibrator has been added to the top assembly, equipped with a high-performance vibration motor, ensuring the production of high-quality, high-density bricks.
- QT4-40 manual block making machine capacity is 2500 pcs per day for hollow block with 390×190×190mm size, it can produces 4 hollow blocks per molding cycle.
- The molding cycle for the QT4-40 is 40 seconds, covering the complete sequence of material feeding, vibration molding, and demolding.
- Multi-functional machine. Only mold replacement is required to produce hollow blocks, solid bricks, perforated bricks, paving bricks and other products.
- The QT4-40 manual block machine can be equipped with a JW350 pan mixer and belt conveyor at the front end for higher working efficiency.
- The manual brick making machine adopts upper mould push-pull structure with automatic material scraping, featuring flexible and convenient operation.
- The price of QT4-40 block making machine depends on the quantity of extra molds purchased. The complete production line is priced at approximately USD 5,000 – 10,000 for your reference.
Capacity & Core Parameter of QT4-40 Manual Block Making Machine
- The entire QT4-40 manual block production line has a power rating of 14.3 kW and can produce 2,000 to 2,500 standard hollow bricks (390×190×190 mm) per day; output is even higher for smaller solid bricks. It's a true example of a compact machine delivering high performance.
- The QT4-40 is designated as a manual brick machine because the mold requires manual pushing and pulling; operation is simple, and the entire production line requires a crew of three workers.
- QT4-40 supply various molds that can be swapped out at any time to enable the production of different brick types.
| Block Maker | QT4-40 Block Machine |
|---|---|
| Block Machine Power | 9.3kw |
| Molding Cycle Time | 40 seconds each time |
| Molding Method | High-frequency vibration |
| Pallet Size | 850 × 450 mm |
| Vibration Frequency | 2800 vibrations/min |
| Vibration Form | Platform Vibration |
| Vibrating Force | 40 KN |
| QT4-40 Machine Size | 1500× 1750× 1900 mm |
| Control System | Electric Control Cabinet |
| Main Raw Materials | Sand, cement, crushed stone, fly ash, slag |
| Hollow Blocks | 2,500 pcs per day |
| Drived Type | Electric Type |
| Voltage Standard | 380v, 220v, 440v and Supply Customize |
| QT4-40Brand | Furein Block |
| Block Maker Color | Blue, black, red, yellow, and others |
| Block Machine Warranty | 18 months |
QT4-40 manual brick making machine Working Video
FAQs about QT4-40 manual Block Making Machine
What is QT4-40? What does it stand for?
QT is the abbreviation for Block Making Machine. It means the QT4-40 brick making machine can produce 4 standard hollow blocks (390×190×190mm) every 40 seconds.
What is the working principle of the QT4-40 block machine?
The QT4-40 manual brick making machine is a stationary machine that uses a combination of vibration and pressure to compress raw materials, such as concrete, fly ash, and slag, into various types of construction bricks.
What is the daily output of the QT4-40? Will it meet my needs?
Taking standard hollow blocks as an example, a single QT4-40 block machine produces approximately 2,000 to 2,500 blocks per 8-hour shift. If you are producing smaller standard bricks or paving stones, the daily output can exceed 5,000 units. It is perfectly suited to meet the needs of small and medium-sized enterprises.
How much does the QT4-40 block maker cost?
The price of the QT4-40 manual block moulding machine is very affordable (typically between $5,000 and $10,000, depending on the configuration), and the total cost to set up the entire block production line is low.
Is the QT4-40 manual brick machine prone to breakdowns? How long will it last?
It is highly durable. The QT4-40 manual brick machine features a compact, well-engineered design, and utilizing four-column guiding and powerful vibration motors, ensuring stable operation. Key components rely on proven mechanical transmission methods, resulting in a low failure rate; with proper maintenance, it can easily last for five years or more.

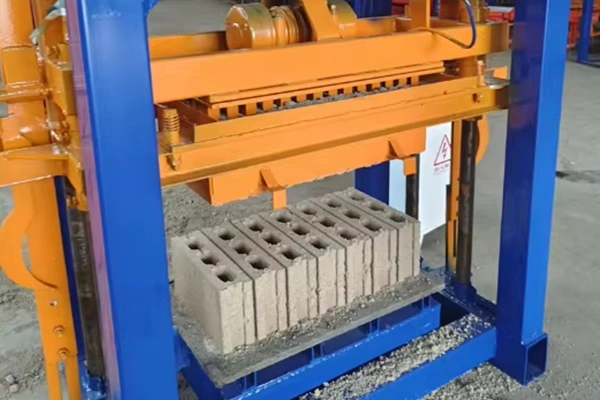

Are the bricks produced by the QT4-40 manual concrete block machine strong? Can they be stacked immediately?
The QT4-40 manual concrete block machine employs dual-direction (top and bottom) compression and powerful directional vibration technology. This generates high excitation force, resulting in bricks with excellent density. Once molded and demolded, they can be stacked immediately (typically 3–5 layers high without collapsing).
