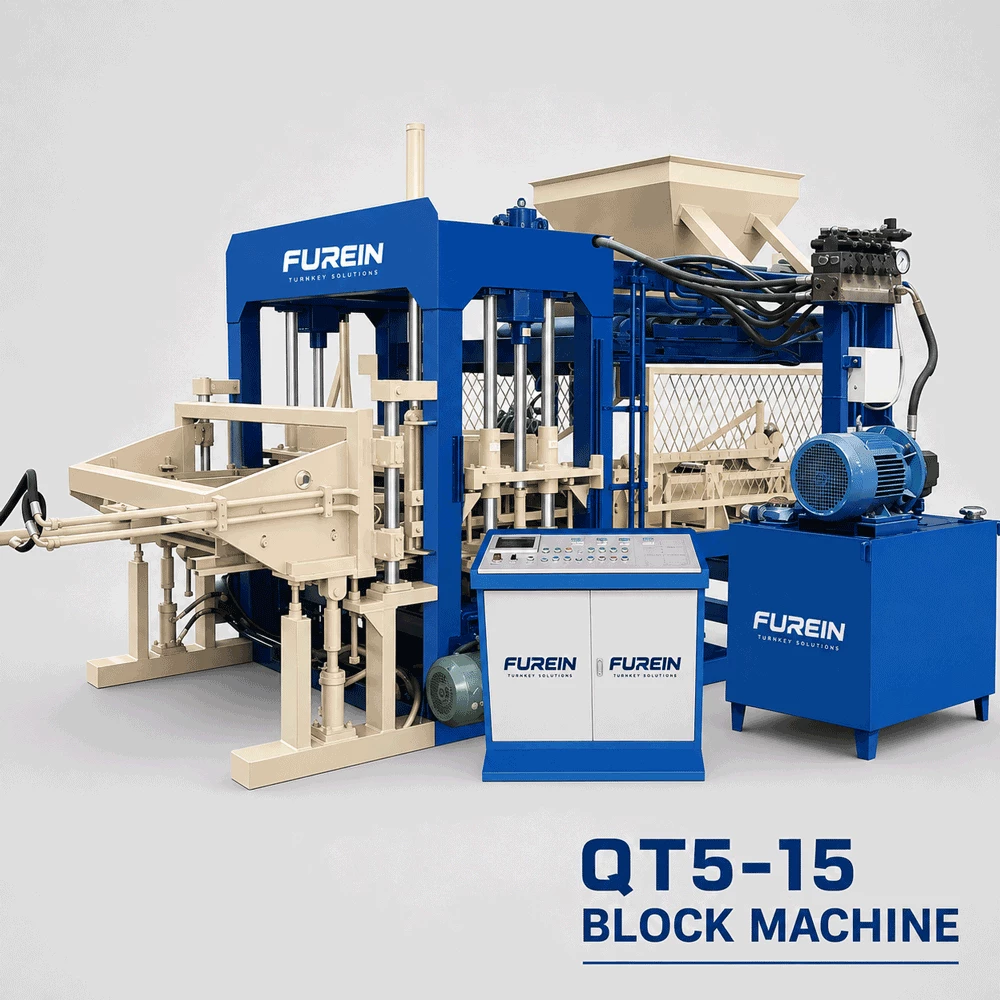

QT5-15 Automatic Block Production Machine Solution for Growing Manufacturers
- The QT5-15 automatic block production machine is ideal for growing concrete block plants, with a daily production capacity of 12,000 bricks (standard hollow bricks size 390 × 190 × 190 mm). Its output is 12.5 times that of the QT4-15.
- The QT5-15 automatic block making machine offers the ideal balance between production capacity and investment, making it the most cost-effective model available. Designed specifically for expanding plants with a high daily output, it helps you quickly recoup your investment in the block production machine.

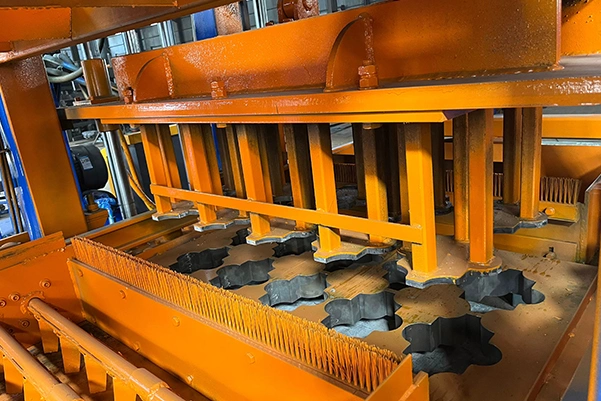

- This versatile block machine can produce a variety of brick types—including hollow bricks, paving bricks, standard bricks, and color bricks—simply by changing the molds.
- The entire fully automated brick making production line features a modular, independent design. You can add a palletizer, automatic batching system, and other components as needed, providing potential for future expansion. This helps you achieve a high ROI and supports the growth of expanding manufacturers.
Core Parameters of QT5-15 Automatic Block Making Machine
| Main Machine | QT5-15 Automatic Block Machine |
|---|---|
| Hydraulic System Pressure | 16 MPa |
| Block Machine Power | 32kw |
| Molding Cycle Time | 15–20 seconds |
| Molding Method | Hydraulic pressure and high-frequency vibration |
| Pallet Size | 1100 × 570 mm |
| Vibration Frequency | 2800–5100 vibrations/min |
| Vibration Form | Platform Vibration |
| Vibrating Force | 60 KN |
| QT5-15 Machine Size | 7310 × 2600 × 2890 mm |
| Control System | Siemens PLC with intelligent touch screen |
| Main Raw Materials | Sand, cement, crushed stone, fly ash, slag |
| Degree of Automation | Full automatic |
| Suitable For | Entry commercial solution |
Why the QT5-15 Specifications For Growing Manufacturers?
- QT5-15 Molding Cycle: A 15-second molding cycle per cycle means extremely high output per 8-hour shift, helping you quickly widen the production gap with small semi-automatic equipment.
- QT5-15 Molding Method: The dual benefits of high compaction density and high compressive strength of the finished product ensure that the bricks have a smooth appearance and meet strength standards, helping you quickly build a strong local reputation.
- QT5-15 Control System: One-button automated operation is simple to use, highly stable, and features a low failure rate.
- QT5-15 Energy Efficiency: Moderate power consumption combined with standard pallet dimensions results in an excellent energy efficiency ratio.

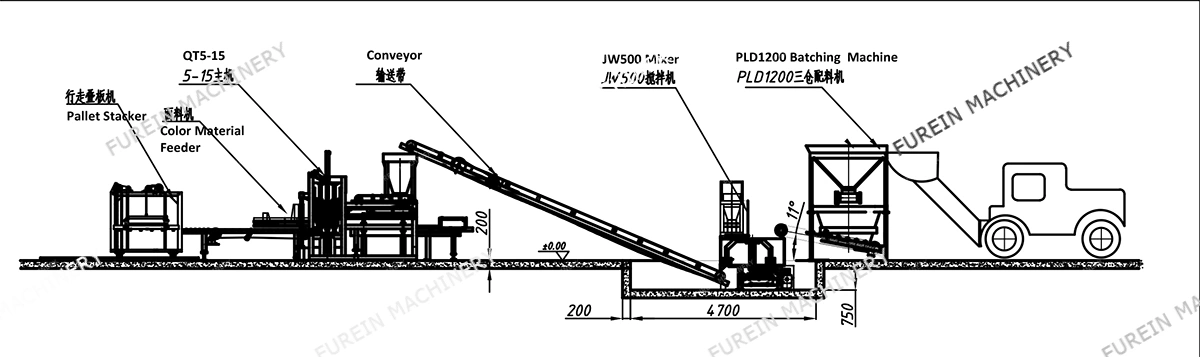

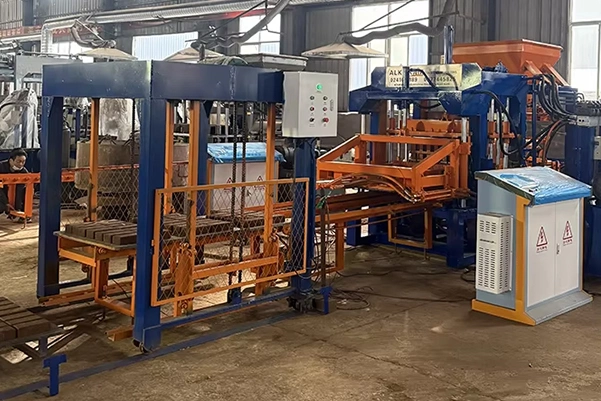

QT5-15 automatic block machine production line
The process of QT5-15 automatic block manufacturing plant
- Automatic batching and weighing of raw materials.
- Automatic cement conveying + forced mixing with water addition.
- Convey concrete to main machine via belt conveyor.

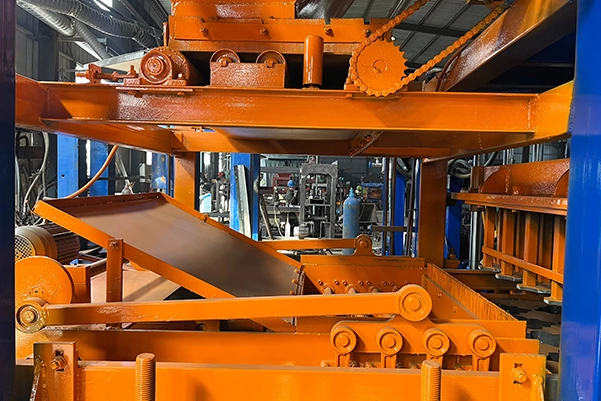

- Forced material feeding + pre-vibration to fill moulds.

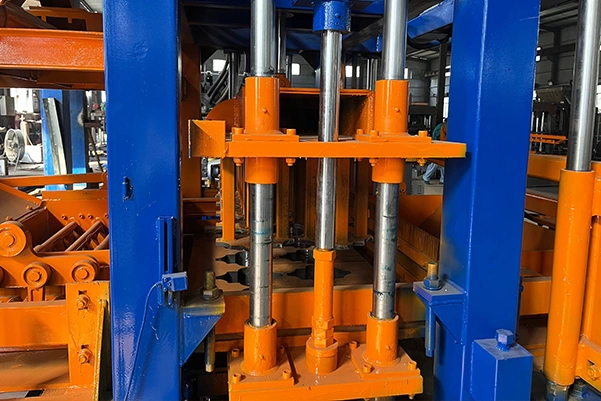

- Integrated forming by hydraulic compression & high-frequency vibration.
- Synchronized stable demoulding to discharge green blocks.
- Automatic stacking on pallets.
- Transfer to curing yard for hardening
Parameters of QT5-15 Full Automatic Block Making Production Line
| Application | Production of color bricks, paving bricks, solid bricks, hollow blocks and other bricks |
|---|---|
| Condition | Brand new |
| Capacity | Up to 12,000 pcs per day for hollow block with 390*190*190mm. |
| Voltage | 380/220/440V, customized voltage available |
| Motor | Siemens, Schneider, etc. |
| Raw Materials for Bricks | Sand, cement, fly ash, concrete, boiler slag, mountain powder, industrial waste |
| Automation Degree: | Full Automatic |
| Place of Origin | Zhengzhou, Henan Province |
| Certification | ISO, CE |
| Warranty | 16 months |
| Payment Terms | TT and others |
| After-sales Service | On-site installation, commissioning & training; engineers available for overseas machinery service |
| Delivery accessories | Full set of operation manuals, equipment factory test reports |
| Brand | Furein |
| Customization | Custom brick machine solutions available |
| Certificate | CE |
| Color | Supply customize, like glue, red, yellow, orange, green or you like |
| Solution | Turnkey solution from drawing to intallation and lifetime after sales service |
Brick types and production capacity of the QT5-15 Block machine
| Type | Block Size | Qty. per Mold | Cycle Molding | Capacity per hour | Capacity per day(10h) |
|---|---|---|---|---|---|
| Color brick | 200*100*60mm | 18 pcs/mold | 18-23 s | 2817-3600 pcs/h | 28170-36000 pcs |
| Paver | 200*160*60mm | 12 pcs/mold | 18-23 s | 1878-2400 pcs/h | 18780-24000 pcs |
| Solid brick | 240*115*53mm | 32 pcs/mold | 13-15 s | 7680-8800 pcs/h | 75800-88000 pcs |
| Hollow block | 390*190*190mm | 5 pcs/mold | 15-20 s | 900-1200 pcs/h | 9000-12000 pcs |
Frequently Asked Questions about QT5-15 Automatic Hydraulic Block Machine
Is QT5-15 block machine suitable for a start-up, or is it strictly for expanding businesses?
The QT5-15 automatic brick machine is ideal for buyers looking to expand production who already have a established customer base and plan to produce 9,000–12,000 standard hollow bricks per day. If you are a complete beginner with very limited funds, you may want to consider smaller models such as the QT4-25 and QT4-26; however, if local construction demand is strong, the QT5-15 automatic concrete block machine is the best solution to avoid having to replace equipment frequently down the line.
What is the average ROI timeline for a QT5-15 block plant?
For the QT5-15 automatic block making production line, assuming a stable supply of raw materials and normal local demand, most customers can recoup the cost of the whole line within 6 to 12 months. The ROI formula is: Daily Output × Profit per Brick – Labor and Energy Costs.
How much space and land area do I need to install a full QT5-15 block production line?
The full QT5-15 block making production line’s main unit and supporting equipment require approximately 150 m²; Furein recommends 1,500 m² for outdoor/indoor curing areas and finished product storage. The total site area should be around 2,000 m².
What extra equipment do I need to upgrade my QT5-15 into a fully automated line later?
The entire QT5-15 automatic brick manufacturing plant features a modular design, allowing equipment to be added or removed as needed. At a later stage, a PLD automatic batching machine, an automatic block stacking machine, as well as cement silos and screw conveyors can be added as needed without replacing the main unit.
How many mold changes are required if I want to produce both hollow blocks and paving stones?
The QT5-15 automatic concrete block manufacturing plant’s mold-changing design has been refined through extensive testing; typically, an experienced worker can complete a mold change within 1 hour, enabling the machine to serve multiple purposes.
What voltage and power supply are required for the QT5-15 automatic block machine?
The QT5-15 automatic block making machine requires 32 KW of power and operates on a standard voltage of 380 V/50 Hz/3-phase; however, the motor can be customized to meet local industrial power standards (e.g., 220 V/440 V, 60 Hz) to ensure plug-and-play operation.
